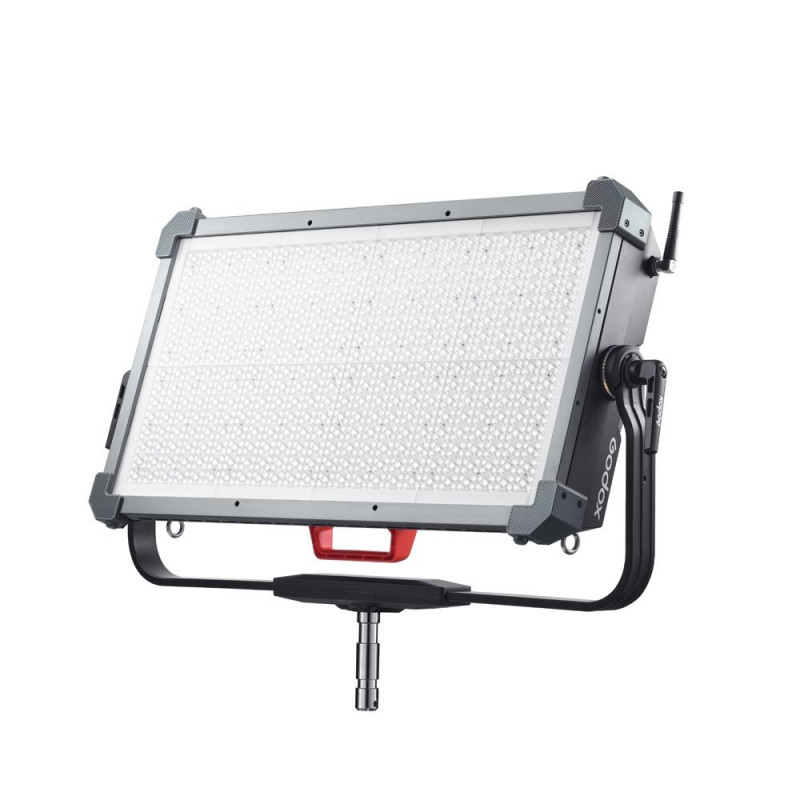

The Godox KNOWLED P1200R Hard is a high-output, full-color RGB LED panel designed for professional film, television, and commercial production. It is a hard-source panel, built to deliver punch, directionality, and control rather than soft ambient wrap.
Fixture Overview
The P1200R Hard is a large-format RGB LED panel engineered for intensity and beam control. Unlike soft RGB panels that spread light broadly, the Hard version emphasizes output density and directional behavior, allowing the light to be shaped aggressively with flags, cutters, barn doors, and diffusion.
It is designed for studios, stages, and large interiors where control and repeatability matter more than speed or portability.
| Specification | Details |
|---|---|
| Item Type | LED Light Panel |
| Power Source | AC Power (cable included) |
| Input Power | 100–240 VAC, 50/60 Hz |
| Power Consumption | 1500 W (maximum) |
| Color Temperature Range | 1800K – 10,000K |
| Color Modes | RGB, Daylight, Tungsten |
| Brightness Range | 0% – 100% |
| Dimming | Built-in dimmer |
| Color Accuracy | CRI ≥96 |
| TLCI | ≥98 |
| Cooling System | Active cooling (fan) |
| Front Accessory Mount | Proprietary |
| Control Methods | Bluetooth, CRMX |
| Mobile App Support | Godox Light (iOS & Android) |
| Wireless Control Distance | Up to 30 m / 98.4 ft (Bluetooth) |
| Display | Yes |
| Environmental Resistance | None specified |
| Included Storage Case | No |
Photometrics
| CCT | Distance | Output |
|---|---|---|
| 3200K | 1 m / 3.3 ft | 11,426 fc / 123,000 lux |
| 3200K | 3 m / 9.8 ft | 1,430 fc / 15,400 lux |
| 3200K | 5 m / 16.4 ft | 562 fc / 6,050 lux |
| 5600K | 1 m / 3.3 ft | 12,634 fc / 136,000 lux |
| 5600K | 3 m / 9.8 ft | 1,588 fc / 17,100 lux |
| 5600K | 5 m / 16.4 ft | 617 fc / 6,650 lux |
Physical Specifications
| Specification | Details |
|---|---|
| Dimensions (with yoke) | 32.83 × 23.86 × 6.69 in (83.39 × 60.6 × 16.99 cm) |
| Weight (with yoke) | 40.8 lb / 18.5 kg |
| Yoke Type | Manually-operated yoke |
| Fixture Mounting | Not specified by manufacturer |
Packaging Information
| Specification | Details |
|---|---|
| Package Weight | 47.12 lb |
| Box Dimensions | 31.1 × 19.9 × 9.3 in |
Key Characteristics
High-output RGB LED hard panel
Directional, punchy light character
Full-color and tunable white capability
Panel-format fixture with point-source-like control
Designed for professional studio and stage workflows
This is a panel meant to define light, not just fill space.
Light Quality and Output
The P1200R Hard produces a strong, directional beam with significantly more punch than soft LED panels of similar size. It works well as:
- a hard key light
- simulated daylight through windows
- a controlled fill source at distance
Because the source is harder by design, it responds well to negative fill, cutters, and diffusion. Adding diffusion softens the light without completely destroying output, making it flexible across a wide range of setups.
Color and Control
The P1200R Hard uses a full-color RGB LED engine, allowing accurate white light as well as saturated colors without gels. Green–magenta adjustment makes it easier to match mixed lighting environments and modern camera sensors.
Control is built for professional lighting workflows, supporting console-driven operation, wireless control, and multi-fixture coordination. It integrates cleanly into DMX-based systems and larger lighting rigs.
Power and Electrical Workflow
The P1200R Hard is designed for professional power environments and sustained high-output use. It delivers strong performance without the heat, lamp changes, or inefficiencies associated with traditional high-wattage tungsten or discharge panels.
For studios transitioning to LED, it offers a modern alternative with far more flexibility.
Typical Use Cases
Hard key light for large interiors
Simulated sunlight on stages
Directional fill with control
Commercial studio lighting
Narrative film and television production
The P1200R Hard excels when productions need authority, shape, and control from a panel-format fixture.
Where It Fits in the Market
The Godox KNOWLED P1200R Hard occupies the professional hard RGB panel segment. It sits above soft RGB panels in punch and control, and below massive point-source systems in scale, offering a balance of coverage and definition.
It is most commonly used in:
Narrative film and television
Commercial studios
Soundstage environments
Rental-house professional panel packages
