Overview

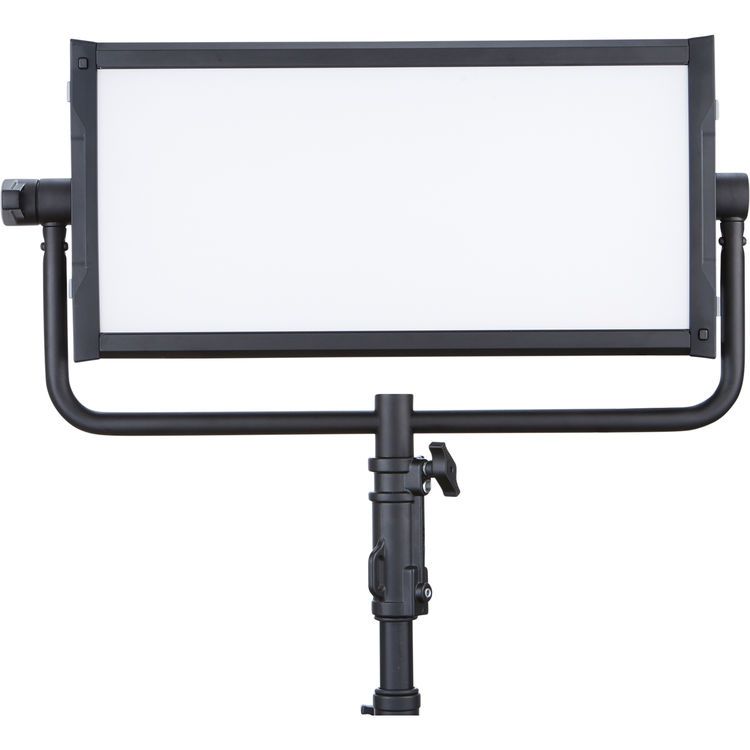

The Litepanels Gemini 2×1 Soft is a full-size RGBWW LED panel designed for professional studio, broadcast, and narrative production where a large, inherently soft source is required. Unlike the Hard variant, the Soft version incorporates integrated diffusion, producing a broader, smoother beam without the need for external modifiers.
The Gemini 2×1 Soft is intended to function as a primary soft source on set, delivering consistent output, accurate color, and system-level control in environments where speed and repeatability matter.
Strengths
The fixture offers a large, naturally soft source, excellent color accuracy, full RGB and extended CCT control, and deep compatibility with professional DMX and networked lighting systems. Integrated diffusion simplifies setups and ensures consistent light quality.
Limitations
The Gemini 2×1 Soft sacrifices punch and beam control compared to the Hard variant. Its size and weight limit portability, and the integrated diffusion reduces flexibility for situations requiring harder, more directional light.
| Specification | Details |
|---|---|
| Light Fixture | |
| Item Type | 1× LED Light Panel |
| Included Filters | Soft Diffusion |
| Included Storage Case | No |
| Cooling System | Fan |
| Beam Angle | 110° |
| Built-In Flash | No |
| Umbrella Mount | No |
| Front Accessory Mount | Proprietary |
| Photometrics (Unmodified) | |
| 110° at 2700K (1 m / 3.3 ft) | 758 fc / 8,154 lux |
| 110° at 2700K (1.5 m / 4.9 ft) | 336 fc / 3,624 lux |
| 110° at 2700K (3 m / 9.84 ft) | 84 fc / 906 lux |
| 110° at 2700K (4.6 m / 15.09 ft) | 36 fc / 385 lux |
| 110° at 6000K (1 m / 3.3 ft) | 902 fc / 9,713 lux |
| 110° at 6000K (1.5 m / 4.9 ft) | 401 fc / 4,317 lux |
| 110° at 6000K (3 m / 9.84 ft) | 100 fc / 1,079 lux |
| 110° at 6000K (4.6 m / 15.09 ft) | 43 fc / 459 lux |
| Color & Control | |
| Color Temperature Range | 2700–10,000K |
| Color Modes | RGB, Daylight, Tungsten |
| CRI | 99 (2700K), 99 (6000K) |
| TLCI | 99 (2700K), 99 (6000K) |
| Dimming | Continuous, 0–100% |
| Connectivity | |
| Wireless Control | Bluetooth (adapter required) |
| Wireless DMX | Supported (adapter required) |
| Mobile App Compatibility | Yes (iOS only, adapter included) |
| App Functionality | Remote control |
| Power & I/O | |
| Power Source | AC Power (cable included), Battery (not included) |
| Power Consumption | 350 W |
| AC Input | 110–240 VAC, 50/60 Hz |
| DC Input | 28 VDC |
| Battery Type | 2× Rechargeable, 14.4 VDC (not included) |
| Battery Plate Support | 2× Gold Mount, 2× V-Mount (not included) |

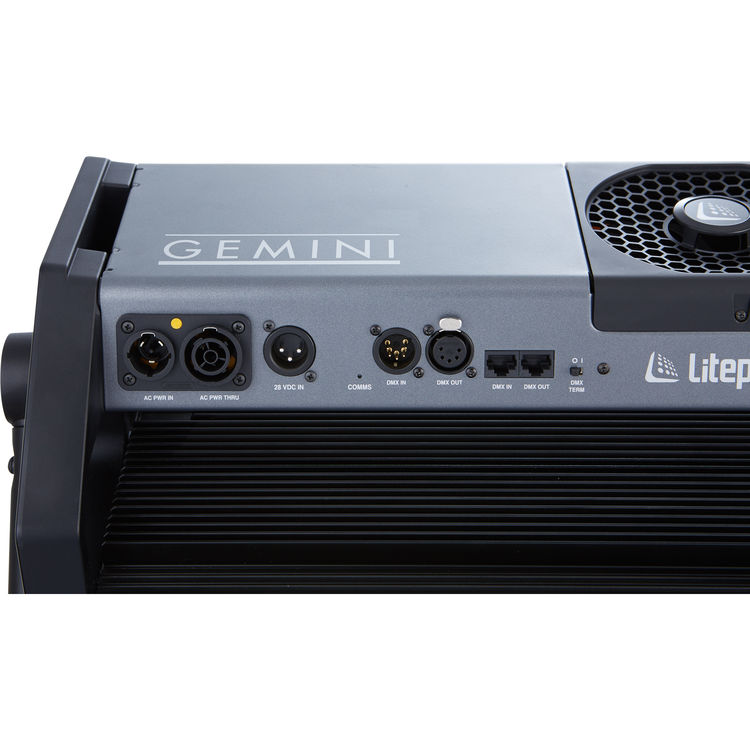

| Power Input | 1× powerCON AC |
| Power Output | 1× powerCON AC |
| Battery / DC Input | 1× XLR 3-Pin |
| DMX Input | 1× XLR 5-Pin, 1× RJ45 |
| DMX Output | 1× XLR 5-Pin, 1× RJ45 |
| Power Pass-Thru | Yes |
| Inline Switch | No |
| Included Cable | USA Type-A/B to powerCON (9.84 ft / 3 m) |
| Mounting | |
| Yoke Type | Manually-operated |
| Fixture Mount | 1× 1-1/8″ Stud (via yoke mount) |
| General | |

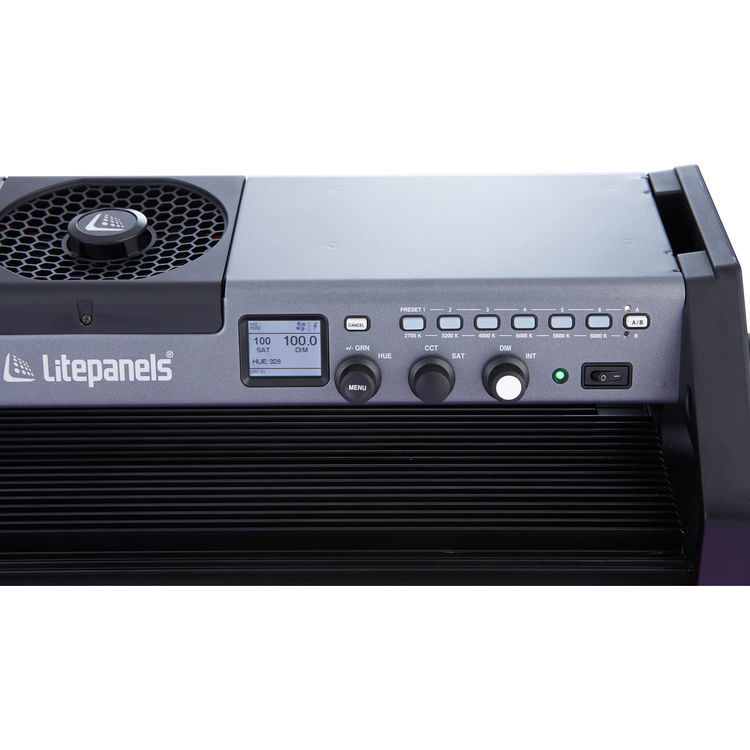

| Display | LCD |
| Environmental Resistance | Dust-resistant (IP20) |
| Certifications | CE, FCC, IC, cETL |
| Materials | Aluminum (housing) |
| Dimensions & Weight | |
| Fixture Panel Size | 23.75 × 11 in / 60.33 × 27.94 cm |
| Fixture Dimensions | 25 × 12.5 × 6.5 in / 63.5 × 31.8 × 16.5 cm |
| Fixture Weight | 22.27 lb / 10.1 kg |
| Packaging | |
| Package Weight | 29.7 lb |
| Box Dimensions | 34.5 × 24 × 10 in |
Position in the Litepanels Lineup
Within the Gemini family, the 2×1 Soft represents the diffusion-forward option for large-format lighting. It shares the same color science, control architecture, and RGBWW engine as the 2×1 Hard, but with a permanently softened output profile.
The Soft variant is commonly chosen for studio grids, multi-camera environments, and interview setups where light quality must remain consistent across multiple fixtures and setups without constant modifier changes.
Output and Performance
The Gemini 2×1 Soft delivers broad, even illumination with smooth falloff and minimal hotspotting. While its peak intensity is lower than the Hard version due to integrated diffusion, the effective output remains substantial enough to serve as a key light in studio and stage environments.
The larger emitting surface produces naturally flattering light, reducing contrast and shadow definition compared to the Hard variant. This makes it particularly effective for talent-facing applications where skin tone rendering and consistency are critical.
Color Modes and Accuracy
The fixture supports RGB, Daylight, and Tungsten modes with an extended correlated color temperature range, allowing it to match practical sources, ambient conditions, and stylized lighting designs without gels.
Color accuracy meets professional broadcast and cinematic standards, with stable output across color modes and reliable performance during dimming and color temperature shifts. Saturated colors remain controlled and usable, even at high output levels.
Effects and Creative Control
Built-in effects are included for narrative and practical use, such as simulating emergency lighting, ambient color changes, or environmental effects. These are intended to support storytelling and production needs rather than serve as novelty features.
The Gemini 2×1 Soft is most effective when effects are used subtly as part of a broader lighting design rather than as standalone visual elements.

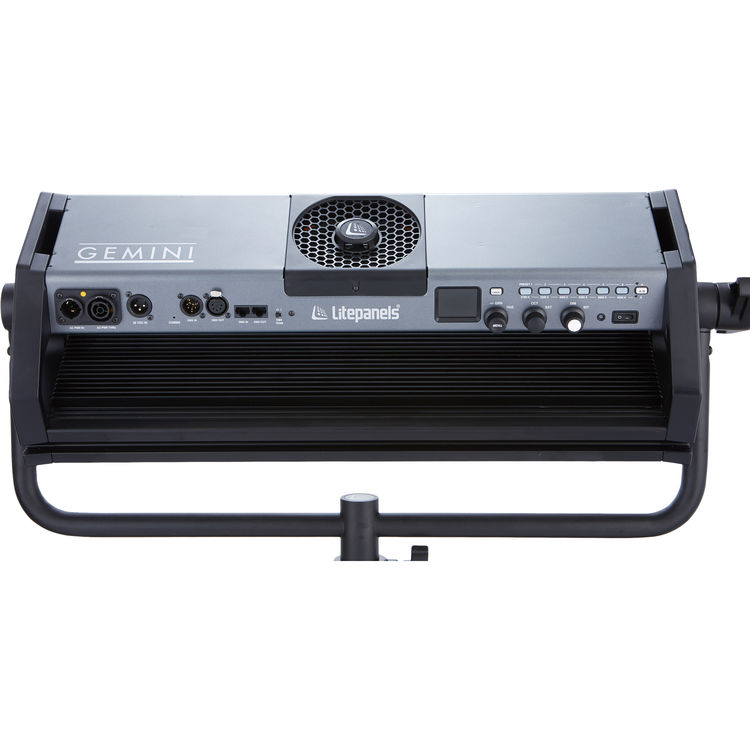

Power and Control
The fixture is designed for professional power infrastructure, supporting AC operation and DC input for studio or location use. It integrates fully into DMX-based control environments through XLR and RJ45 connections, allowing seamless inclusion in modern networked lighting systems.
Wireless control is available via optional Bluetooth or Wi-Fi adapters, with mobile device control supported through the SmartLite Director app. The control system scales cleanly from on-fixture adjustments to full console-based operation.

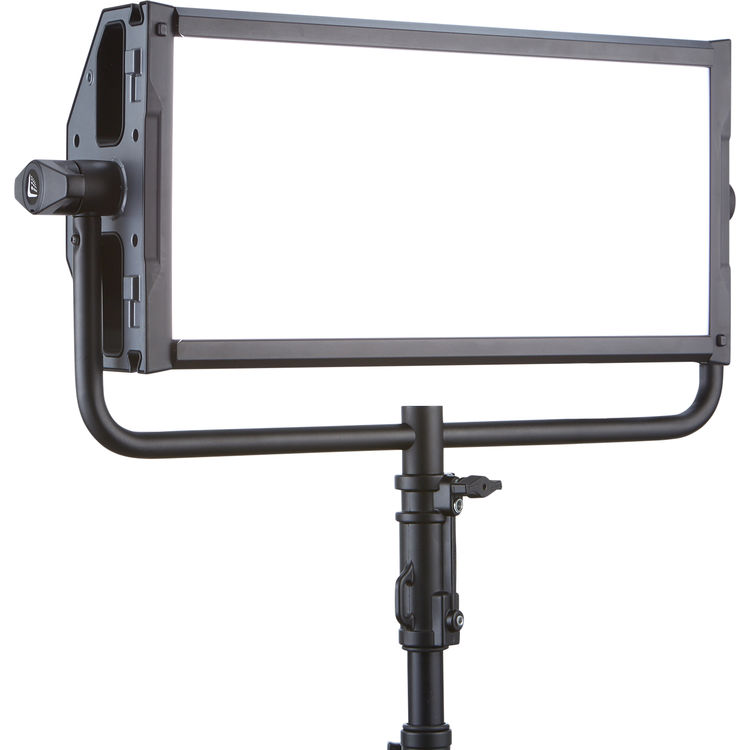

Mounting and Rigging
The Gemini 2×1 Soft features a robust yoke and mounting system suitable for studio grids, truss, and heavy-duty stands. Its size and weight place it firmly in the category of fixtures that benefit from proper rigging and power planning.
The integrated diffusion panel reduces the need for external modifiers, simplifying rigging and minimizing wind and handling issues in permanent or semi-permanent installations.
Typical Use Cases
The Gemini 2×1 Soft is commonly used as a key light in studio and broadcast environments, particularly for interviews, panel shows, and multi-camera productions. It is also widely used in narrative filmmaking as a large soft source for interiors, beauty lighting, and controlled fill.
Its consistency and integrated softness make it especially well suited to situations where lighting needs to remain unchanged across long shooting days or multiple episodes.
Rental and Owner-Operator Relevance
The Gemini 2×1 Soft is primarily a rental-house and facility fixture. Its size, cost, and power requirements make it most practical for productions with established lighting infrastructure and experienced crews.
For owner-operators, it is a specialized investment best suited to studio ownership, commercial facilities, or production companies that regularly service broadcast or scripted projects.
Market Position
The Gemini 2×1 Soft occupies the high end of the professional RGB panel market. It competes directly with other large, diffusion-based studio panels and prioritizes light quality, color fidelity, and system integration over portability or modularity.
It is not designed for entry-level users or mobile creator workflows. Its design reflects professional lighting department expectations.
Summary
The Litepanels Gemini 2×1 Soft is a production-grade RGB LED panel built for environments where soft, consistent, color-accurate light is a requirement rather than a preference. It is designed to function as a primary studio source and excels in controlled, professional lighting workflows.
For FilmAndVideoLights.com, the Gemini 2×1 Soft serves as the definitive soft counterpart to the Hard model and completes the Gemini panel ecosystem.
