Overview

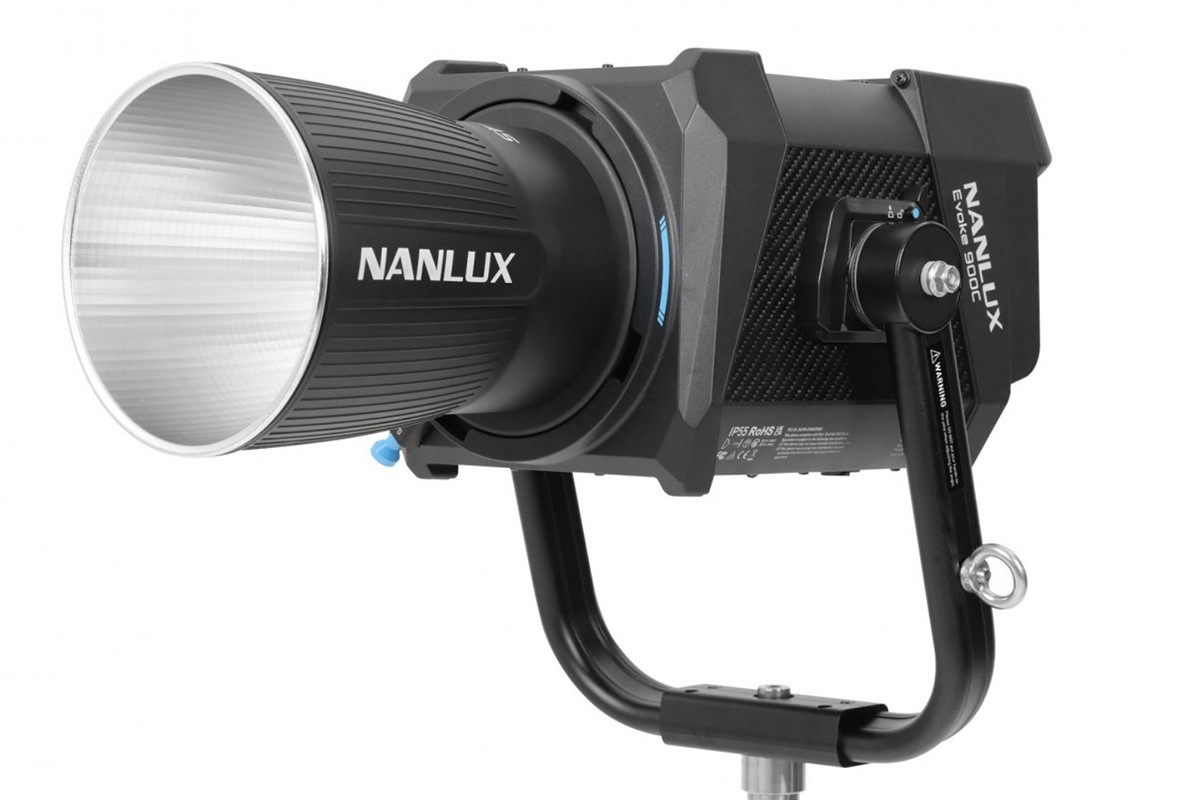

The Nanlux Evoke 900C is an RGBACL point-source LED using the NL accessory mount. It combines full-colour operation and tunable white light with a separate power supply and interchangeable beam-shaping accessories.
The 900C is a six-colour NL-mount point source for white matching, saturated colour and several optical configurations. Its appeal depends on using those colour and shaping options, with a separate supply and the appropriate accessory set.
Key specifications
| Specification | Details |
|---|---|
| Rated power | 940W |
| CCT / tint | 1800K–20,000K; ±200 G/M |
| Weather rating | IP55 |
| Head / yoke / PSU | 7.7kg / 1.84kg / 4.5kg |
| Control | Onboard, NANLINK, DMX/RDM, built-in CRMX, Art-Net and sACN |
| 5600K, bare, 3m | 4341 lux |
| 5600K, 26° reflector, 3m | 40,300 lux |
| 5600K, 45° reflector, 3m | 12,940 lux |
| 5600K, 60° reflector, 3m | 8541 lux |
Strengths and limitations
Strengths
- Six-colour mixing provides both wide CCT/tint adjustment and full-colour operation.
- Internal CRMX and network control support console-driven location packages.
Limitations
- NL accessories are distinct from Bowens, and reflector figures do not describe every source configuration.
- Head, yoke and PSU weights must be combined with optics and cabling to judge the working package.
Practical uses
Use it for colour-capable window light, bounce or large diffusion setups. Compare white and saturated-colour performance separately, and check the accessory and control profile required for the job.
| Setup | How to use this fixture |
|---|---|
| Through-window light | Choose reflector coverage or a compatible NL Fresnel to suit the window and shadow pattern. Set the actual colour before metering. |
| Large coloured bounce | Use the required hue and saturation during exposure planning. A 5,600K narrow-reflector reading is not the light available from a saturated bounce. |
| Controlled white key | Use CCT and tint with the production camera, then record the modifier and quality settings so the look can be repeated. |
Output and colour
The six-colour RGBACL/RGBLAC engine combines red, green, blue, amber, cyan and lime emitters. At 5,600K/3m, Nanlux lists 4,341 lux bare, 40,300 with the 26° reflector, 12,940 with 45° and 8,541 with 60°. Narrow reflectors concentrate output into a smaller field; saturated-colour levels differ from white output.
Sources: Nanlux Evoke 900C: www.nanlux.com reference.
The 26°, 45° and 60° reflector rows show how strongly beam concentration changes the centre reading. At 3m/5,600K, 40,300 lux with 26° and 8,541 lux with 60° describe different coverage, not interchangeable promises of usable light over the same area.
The RGBACL/RGBLAC engine has a 1,800–20,000K white range. Output varies with CCT and colour mode.
Tests and reviews
Gaffer & Gear tests the 900C through windows with reflectors, a Fresnel and a large softbox, and examines control modes. CineD’s video adds first impressions and travel-kit discussion. Together they illustrate the range of configured uses; the table here remains explicitly manufacturer photometry.
Watch the optical and control tests and the separate kit overview.
Power and batteries
Rated power is 940W with a separately connected PSU. The manufacturer manual specifies 100–240V AC and a 48V/18.75A maximum head-input reference. Keep the head connection and mains input as separate parts of the system.
The head, yoke and supply weigh 7.7kg, 1.84kg and 4.5kg respectively, a combined component subtotal of 14.04kg before optic, cables and clamps. Each supported load should be assessed where it actually sits in the rig.
Control, cooling and camera operation
| Control path | Hardware and operating notes |
|---|---|
| Direct / app | Onboard controls and NANLINK; choose the intended white/colour mode. |
| Console | DMX/RDM and internal CRMX. Match precision and colour personality with the desk. |
| Network | Art-Net/sACN for a configured lighting network; record protocol and universe with the patch. |
| Colour settings | 1,800–20,000K and ±200 G/M manufacturer scale; RGBLAC/RGBACL engine terminology describes the six emitters. |
Colour cues depend on the selected hue, transition, dimming curve and precision profile. Rehearse those settings together at the intended frame rate.
Establish the cooling mode before approving a sound-sensitive setup. Run the actual intended level after warm-up, with the head in its working position and any soft modifier fitted.
Modifiers, rigging and the working package
The NL mount is proprietary. NANLUX lists 7.7kg head, 1.84kg yoke and 4.5kg PSU: 14.04kg combined before optic, cables or clamps, with each supported load assessed separately. Order a 900C-compatible NL Fresnel, reflector or softbox and check the actual accessory revision. IP55 protection applies only in the prescribed assembled and connected condition.
| Part | Published/package detail |
|---|---|
| Head | 7.7kg without yoke |
| Yoke | 1.84kg |
| PSU | 4.5kg |
| Optical package | 900C-compatible NL reflector, Fresnel or softbox; exact revision matters |
| Weather configuration | IP55 under prescribed assembly and connection conditions |
Transport space includes the selected optics as well as the head and supply. Fit and lock the modifier before checking tilt, balance and head-cable reach.
Alternatives and related fixtures
| Fixture | When to compare it |
|---|---|
| Nanlux Evoke 1200B | Choose bi-colour Evoke when full colour is unnecessary, comparing the heavier PSU and intended NL optic. |
| ARRI Orbiter | Compare another six-colour interchangeable-optic system with its own QLM inventory and lower input. |
| Godox KNOWLED MG1200R | Compare a high-output full-colour G-mount package, including its electrical and accessory requirements. |
What people are saying
Gaffer & Gear
Andrew Lock demonstrates several through-window configurations and tests the fixture with different reflectors, a Fresnel and a large softbox. The review also examines control modes, illustrating the difference between a versatile package and one headline output reading. Watch video.
CineD
CineD examines first impressions, the travel kit, controls and the type of production the 900C suits. The package discussion complements the optical tests when deciding how much equipment must travel with the lamp. Watch video.
Videos
Gaffer & Gear tests the Evoke 900C with reflectors, a Fresnel and a softbox.
Rental and used-fixture checks
- Verify the NL accessory model, locking engagement and balance.
- Check PSU/head cable, connector seals and the complete component list.
- Test the selected fan mode, low-level fades and saturated colours with the intended camera/profile.
Documentation and specifications
NANLUX Evoke 900C manufacturer user manual, distributor-hosted PDF
