Overview

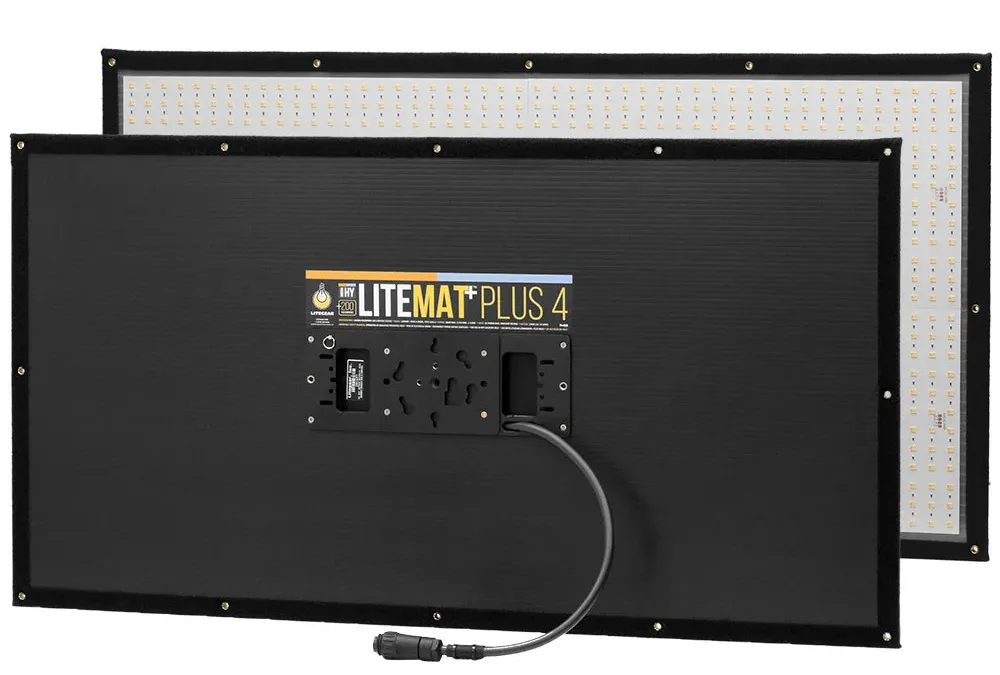

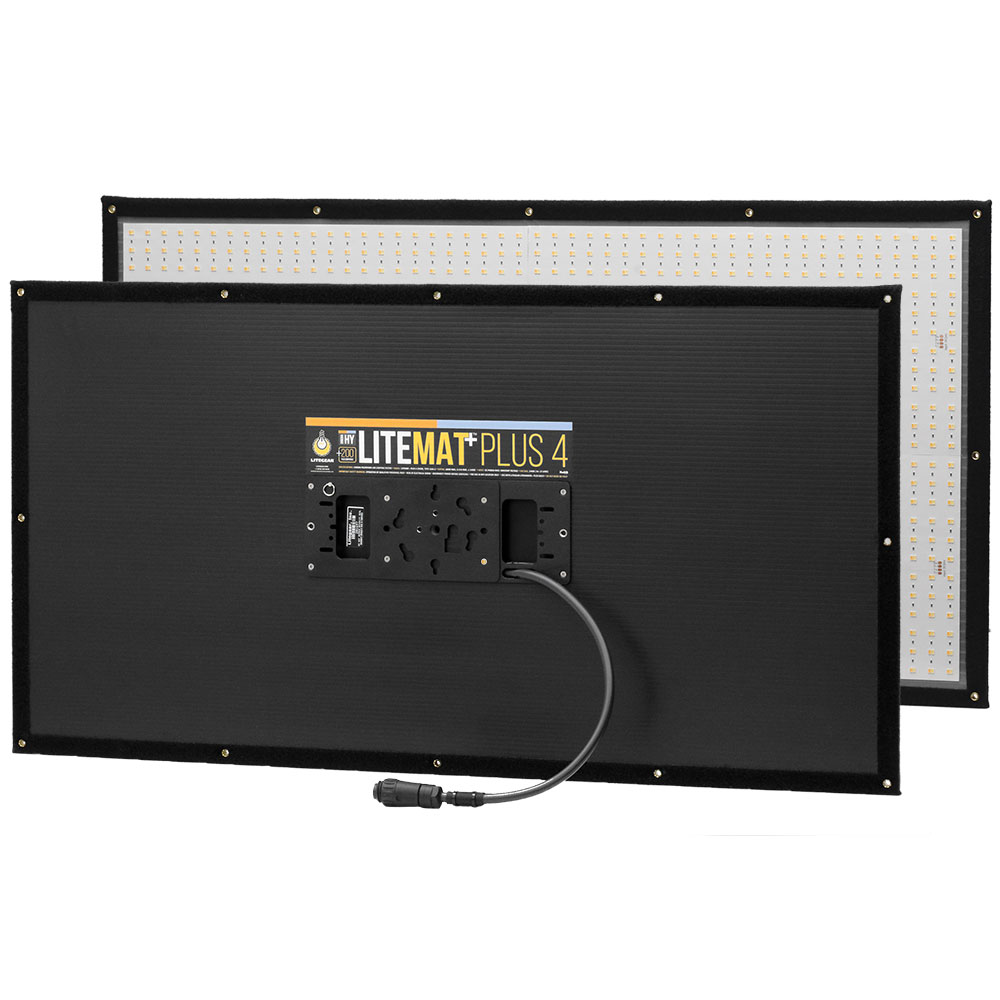

The LiteMat Plus 4 is a thin bi-colour LED mat with a separate LiteDimmer and power supply. Its broad emitting area and low head weight suit tight spaces, overhead keys and lightweight frames.
The Plus 4 is a thin bi-colour source for close keys and low-clearance overhead work. Its light emitting head is only one part of the system: specify the Plus dimmer, supply, mounting plate and light-control accessories together.
Key specifications
| Specification | Details |
|---|---|
| Generation / type | LiteMat Plus 4; bi-colour, no RGB or colour pixels |
| White range | 2,600–6,000K |
| Head input | 24V DC, 8.33A, 200W |
| Listed dimmer | LiteDimmer Plus Duo DC200 |
| Listed AC supply | 24V / 250W LitePower |
| Head dimensions / weight | 1,016 × 533 × 23mm / 2.81kg |
| Manufacturer colour references | CRI/TLCI 95+ |
| Reference photometry | Undiffused, horizontal, 0.61m and 1.22m |
| Working accessories | LiteMount, diffusion, PolySkirt and optional grid |
| Remote control | Depends on the actual fitted Plus dimmer/receiver configuration |
Strengths and limitations
Strengths
- A broad, thin bi-colour head fits low-clearance keys and overhead rigs.
- Separating head, dimmer and supply can keep weight away from the emitting surface.
Limitations
- No full colour or pixel animation, and the published output is undiffused.
- A complete setup needs the matched Plus dimmer, supply, cables and mounting hardware.
Practical uses
Use it as a close soft key, overhead source or discreet light in a restricted space. The lightweight head does not remove the need to support the mount, cables, dimmer and modifiers correctly.
| Setup | How to use this fixture |
|---|---|
| Close soft key | Fit the diffusion and skirt, then set distance for the required wrap. The undiffused table is not the exposure through that assembled key. |
| Low ceiling or overhead | The thin emitting head can reduce clearance needs. Put the dimmer/PSU on their intended separate support so their cables do not pull on the mat. |
| Moving interview key | The linked commercial breakdown uses two gridded Plus 4s on a wheeled goalpost. Include the full grip and cable arrangement when adapting that method. |
Output and colour
The Plus 4's manufacturer table is undiffused, measured horizontally at 0.61m and 1.22m. Its 4,951-lux reading at 1.22m/4,300K is not a reading through a supplied diffuser. Fit the intended diffusion and skirt before judging exposure and softness. This is a 2,600–6,000K bi-colour mat, with no RGB mixing or independently addressed colour pixels.
Undiffused Output
| CCT | 0.61m / 24in | 1.22m / 48in |
|---|---|---|
| 2,600K | 16,749 lux | 4,187 lux |
| 4,300K | 19,806 lux | 4,951 lux |
| 6,000K | 18,342 lux | 4,585 lux |
Sources: LiteMatPlus4DataSheet.
The 4,951-lux 1.22m/4,300K result is an undiffused manufacturer reference. Diffusion, skirt depth and grid choice affect useful transmission, spill and source appearance. Match those accessories before comparing a Plus 4 with a rigid soft panel.
The Plus 4 adjusts white light only. RGB mixing and separately controlled colour zones require a Spectrum head.
Tests and reviews
The linked Plus 4 owner values brightness, simple adjustment and modular soft-light accessories. A separate gaffer breakdown shows gridded mats used as a key on a wheeled goalpost. Those are first-person application accounts, while the numerical table remains the manufacturer’s undiffused test.
Read the Plus 4 ownership discussion and the commercial setup breakdown.
Power and batteries
The head requires 24V DC at 8.33A/200W. The matching LitePower supply is rated 24V/250W; 250W is its capacity, not the lamp’s draw.
Battery operation depends on the actual dimmer and compatible supply hardware. Plus 24V cabling is distinct from Spectrum’s 48V PDX system; the similar mat format does not make those electrical systems interchangeable.
Control, cooling and camera operation
| Control path | Hardware and operating notes |
|---|---|
| Local | CCT and intensity through the fitted LiteDimmer Plus. |
| Console | DMX capability belongs to the actual dimmer package, not the bare emitting mat. |
| Wireless | Identify the fitted wireless dimmer/receiver hardware; do not assume Spectrum facilities. |
| Colour limitation | Bi-colour only, with no RGB or independently addressed colour pixels. |
Set and label the actual dimmer configuration before rigging the mat beyond reach. A rental order that specifies only “Plus 4” can omit the controller or remote-control hardware the cue requires.
Test a low-level fade through the intended diffusion on camera. With a large close source, a small intensity change can be visible in a reflection or background even if it is hard to judge by looking directly at the mat.
Modifiers, rigging and the working package
Compatible accessory profiles · LiteGear LiteMat 4 PolySkirt
The emitting head is 1,016 × 533 × 23mm and 2.81kg before LiteMount, diffusion, PolySkirt, grid, dimmer or PSU. Check that the package includes the mounting plate and intended diffusion set; the lightweight head alone is not a ready-to-rig kit. Support the remote power components and cable so they do not pull on the mat connection.
| Component | Working requirement |
|---|---|
| Emitting head | 2.81kg; 1,016 × 533 × 23mm |
| Mount | Matched LiteMount and suitable grip attachment |
| Light control | Required diffusion, PolySkirt and grid |
| Power/control | Plus dimmer, 24V supply and full cable set |
| Strain relief | Separate support for dimmer/PSU and slack at the head |
Inspect the emitting surface at both white extremes and check the diffusion/skirt attachment condition. Keep cable weight from distorting the thin head. Its low head weight does not include the mounting plate or the rest of the operating package.
Alternatives and related fixtures
| Fixture | When to compare it |
|---|---|
| LiteMat Spectrum 4 | Choose Spectrum for full colour and pixel operation, specifying its different head generation and 48V dimmer system. |
| Litepanels Gemini 2×1 Soft RGB LED Light Panel | Compare a rigid soft panel when an integrated PSU and conventional yoke are more useful than a thin remote-powered head. |
What people are saying
Reddit, r/cinematography
A Plus 4 owner praises its brightness, simple adjustment, modular accessories and soft, controllable light. Another contributor compares the mat’s form and light quality with a small COB and softbox. View discussion.
Reddit, r/cinematography
A gaffer’s commercial breakdown shows two Plus 4 mats with grids mounted on a wheeled goalpost as the key. View discussion.
Videos
Equipment walkthrough with Elisa Garcia, shared by rental supplier High Output.
Rental and used-fixture checks
- Check the full emitting surface at both CCT extremes for damaged or mismatched sections.
- Test the fitted LiteDimmer's remote-control mode and any battery solution.
- Count LiteMount, skirt, diffusers, grid and all head/PSU cables; inspect hook-and-loop attachment.
Documentation and specifications
