Overview
The Litepanels Gemini 2×1 Hard is a full-size, professional RGBWW LED panel designed for high-end television, studio, and narrative production. It expands the Gemini platform into a 2×1 form factor, delivering greater output, broader coverage, and deeper integration into studio and stage lighting workflows.
The Gemini 2×1 Hard is built for environments where punch, color accuracy, and control infrastructure matter more than portability or novelty. It is intended to function as a primary lighting unit rather than a supplementary source.
Strengths
The fixture offers high output, excellent color accuracy, full RGB and extended CCT control, and deep compatibility with professional DMX and networked lighting systems. Its construction and performance make it suitable for demanding studio and rental environments.
Limitations
The Gemini 2×1 Hard is large, heavy, and power-hungry compared to smaller panels. Its proprietary accessory system limits cross-compatibility, and it requires proper rigging and power planning to deploy effectively.
Key Specifications
| Specification | Details |
|---|---|
| Light Fixture | |
| Item Type | 1× LED Light Panel |
| Included Filters | Diffusion, Soft Diffusion |
| Included Storage Case | No |
| Cooling System | Fan |
| Expected Lamp Life | 35,000 hours |
| Beam Angle | 20° (Unmodified) |
| Built-In Flash | No |
| Umbrella Mount | No |
| Front Accessory Mount | Proprietary |
| Preprogrammed Effects | Yes |
| Photometrics (Unmodified) | |
| 20° at 3200K (1 m / 3.3 ft) | 16,722 fc / 180,000 lux |
| 20° at 3200K (3 m / 9.8 ft) | 1,858 fc / 20,000 lux |
| 20° at 5600K (1 m / 3.3 ft) | 19,230 fc / 207,000 lux |
| 20° at 5600K (3 m / 9.8 ft) | 2,136 fc / 23,000 lux |
| Color & Control | |
| Color Temperature Range | 2700–10,000K |
| Color Modes | RGB, Daylight, Tungsten |
| CRI | 95 |
| TLCI | 97 |
| Dimming | Continuous, 0–100% |
| Connectivity | |
| Wireless Remote Control | CRMX |
| Wireless DMX | Yes |
| Mobile App Compatibility | Yes (Android & iOS, adapter required) |
| Power & I/O | |
| Power Source | AC Power (cable included), Battery (not included) |
| Power Consumption | 500 W |
| AC Input | 100–240 VAC, 50/60 Hz |
| DC Input | 28–33 VDC |
| Battery Type | 1× Rechargeable, 28–33 VDC (not included) |
| Power Input | 1× powerCON TRUE1 AC |
| Power Output | 1× powerCON TRUE1 AC |
| Battery / DC Input | 1× XLR 3-Pin |
| DMX Input | 1× XLR 5-Pin, 1× RJ45 |
| DMX Output | 1× XLR 5-Pin, 1× RJ45 |
| Power Pass-Thru | Yes |
| Inline Switch | No |
| Included Cable | USA Type-A/B to powerCON TRUE1 |
| Mounting | |
| Yoke Type | Manually-operated |
| Fixture Mount | 1-1/8″ Stud (via yoke mount) |
| General | |
| Display | LCD |
| Environmental Resistance | Dust-resistant (IP20) |
| Storage Conditions | −4 to 113°F / −20 to 45°C |
| Certifications | CE, FCC, IC, cETL |
| Materials | Aluminum (housing) |
| Dimensions & Weight | |
| Fixture Dimensions | 25 × 12 × 6.9 in / 63.5 × 30.5 × 17.5 cm |
| Fixture w/ Yoke | 29.4 × 20.8 × 6.9 in / 74.7 × 52.8 × 17.5 cm |
| Fixture Weight | 25.3 lb / 11.5 kg |
| Packaging | |
| Package Weight | 40.2 lb |
| Box Dimensions | 33.5 × 24.5 × 12 in |
Position in the Litepanels Lineup
Within the Gemini family, the 2×1 Hard represents the flagship panel format. It shares the same color science and control architecture as the 1×1 Hard but scales output and coverage to meet the demands of larger sets, multi-camera studios, and grid-mounted lighting systems.
Compared to the Soft variant, the Hard version offers greater contrast and control, allowing crews to choose diffusion externally rather than being locked into a permanently softened source.
Output and Performance
The Gemini 2×1 Hard delivers substantially more output than the 1×1 variant.The wider surface area provides smoother falloff across subjects while maintaining enough intensity to shape light with distance and modifiers.
Its beam remains more focused than soft panel designs, allowing for cleaner edges, stronger separation, and more intentional lighting design when diffusion is selectively applied.
Color Modes and Accuracy
The fixture supports RGB, Daylight, and Tungsten modes, along with an extended correlated color temperature range that reaches well beyond traditional white-light panels. This allows the Gemini 2×1 Hard to replicate practical sources, environmental lighting, and stylized color treatments without gels.
Color accuracy meets broadcast and cinematic standards, with stable output across modes and minimal color shift during dimming or temperature changes. Skin tones remain controlled, even under saturated hues, making the fixture suitable for close-up and beauty-critical applications.
Effects and Creative Control
Built-in effects are included for practical production use, such as simulating emergency lighting, ambient color changes, or environmental cues. These effects are designed to integrate into narrative workflows rather than serve as stand-alone visual gimmicks.
The Gemini 2×1 Hard excels when used as part of a coordinated lighting system, where effects are layered intentionally rather than applied casually.
Power and Control

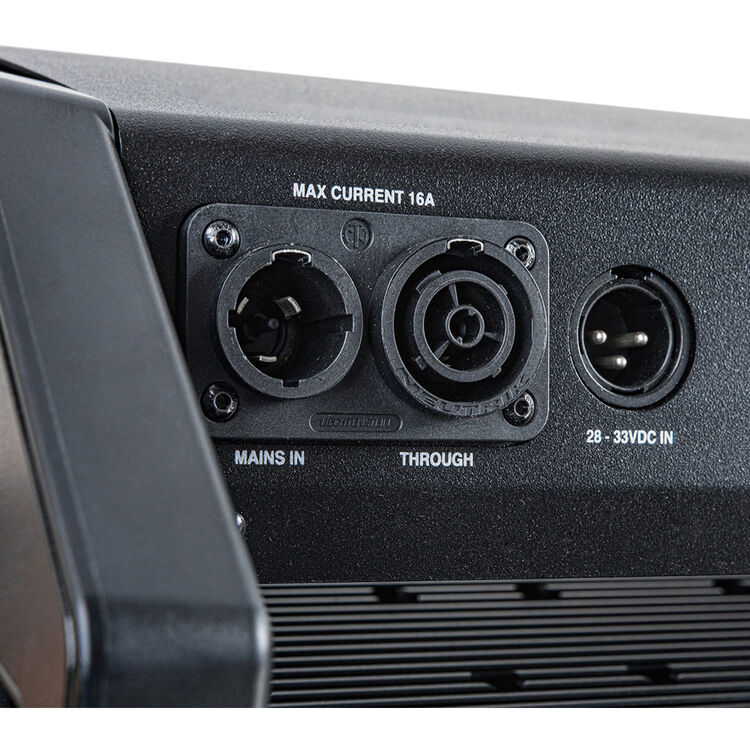

The fixture is designed for permanent or semi-permanent installation as well as location work with adequate power infrastructure. It supports professional AC and DC power options and integrates fully into DMX-based lighting environments using both XLR and RJ45 connections.
Wireless control is available through Bluetooth or Wi-Fi using optional adapters, with mobile device control supported via Litepanels’ SmartLite Director app. The control architecture scales cleanly from on-fixture adjustments to complex, networked lighting setups.
Mounting and Rigging
The Gemini 2×1 Hard features a robust yoke and mounting system intended for studio grids, truss systems, and heavy-duty stands. Its size and weight place it firmly in the category of fixtures that benefit from proper rigging rather than casual stand placement.
The proprietary front accessory mount supports Litepanels diffusion and control accessories, allowing crews to tailor beam quality without compromising output or color integrity.
Typical Use Cases
The Gemini 2×1 Hard is commonly used in episodic television, studio production, stage work, and large-scale narrative filmmaking. Typical applications include key lighting for multi-camera setups, large soft sources with external diffusion, controlled color washes, and motivated practical simulation.
It is especially effective in environments where consistency across multiple fixtures and scenes is critical.
Rental and Owner-Operator Relevance
The Gemini 2×1 Hard is primarily a rental-house fixture. Its size, cost, and power requirements make it most practical for productions with established lighting infrastructure and experienced crews.
For owner-operators, it is a specialized investment best suited to studio-based workflows, commercial production, or facilities that regularly service broadcast and scripted projects.
Market Position
The Gemini 2×1 Hard occupies the upper tier of professional RGB LED panels. It competes directly with other high-end studio panels and prioritizes reliability, color fidelity, and system integration over portability or affordability.
It is not aimed at entry-level users or content-creator markets. Its design reflects the expectations of professional lighting departments working at scale.
Summary
The Litepanels Gemini 2×1 Hard is a serious, full-scale RGB LED panel built for professional production environments where consistency, control, and output matter more than convenience. It represents the Gemini platform at its most capable and is designed to function as a core lighting tool rather than a supplementary fixture.
For FilmAndVideoLights.com, the Gemini 2×1 Hard serves as a definitive reference point for modern, studio-grade RGB panel lighting.
