Aputure Light Storm LS 600d Pro

Last Updated 1 day ago

Overview

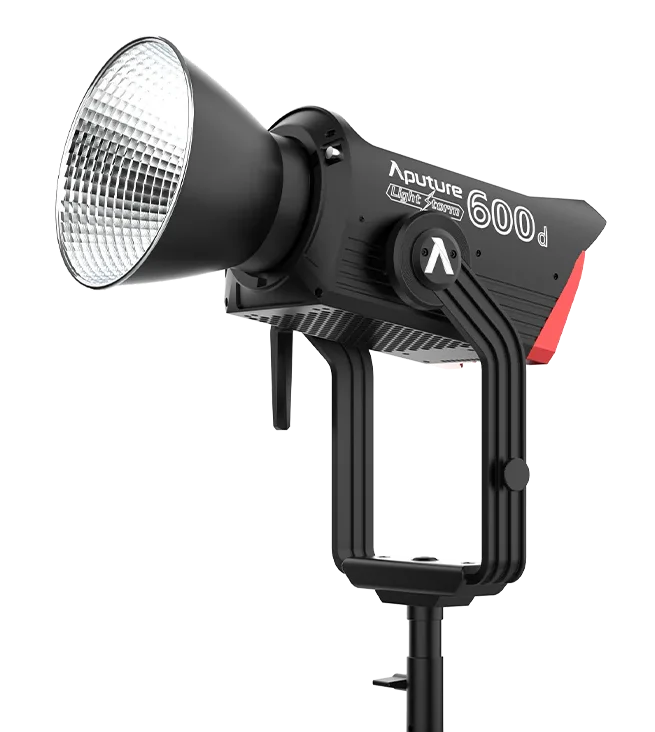

aputure 600d

The Aputure LS 600d Pro is a fixed-daylight Bowens-mount COB LED with a separate controller and professional wired and wireless control. It provides a point source for bounce, diffusion and compatible beam-shaping optics; changing colour temperature requires filtration.

A fixed-daylight source for bounce, diffusion and compatible projection optics. The kit includes a separate controller and head cable, with support sized for the fitted modifier.

Key specifications

SpecificationDetails
Source / CCTFixed-daylight COB, 5,600K ±200K manufacturer reference
LED class / maximum input600W / 720W
AC supply100–240V, 50/60Hz
Manufacturer colour referencesCRI ≥96; TLCI ≥96; CQS ≥94
Optical interfaceBowens; accessory compatibility is model-specific
Battery platesV-mount or Gold-mount controller versions
ControlsOnboard, Sidus Link, 2.4GHz remote, wired DMX and LumenRadio CRMX
Head / controller / clamp4.64kg / 5.80kg / 0.67kg
Head with yoke30.8 × 25.03 × 45.6cm
Controller dimensions32.41 × 17.9 × 14.28cm V-mount; Gold-mount depth 13.27cm
Operating temperature−20°C to 45°C
Weather protectionDust and water resistance; no assigned IP rating
Key specifications

Strengths and limitations

Strengths

  • Fixed-daylight operation provides a straightforward source for daylight bounce and diffusion setups.
  • A separate controller keeps the operating interface accessible when the head is raised.

Limitations

  • Tungsten matching requires correction gel or another fixture rather than a CCT dial.
  • The controller, head cable and batteries make a larger working package than the lamp head alone suggests; it is not IP rated.

Practical uses

The reflector and compatible Fresnel provide reach and beam control. For soft keys, the final bounce or diffusion setup determines exposure and coverage.

SetupHow to use this fixture
Daylight through a windowThe reflector or approved Fresnel gives a directional source. Place the beam and shadows first, then expose for the window pattern and subject separately.
Large soft keyBounce or illuminate the full diffusion surface. Moving the frame changes source size and fall-off; the reflector’s centre lux is not the final key level.
Projected logo or patterned lightUse the exact supported projection optic, lens and accessory configuration. The mount shape alone does not establish thermal compatibility.
Lighting setups

Back to contents

Output and colour

The 600d Pro is fixed at 5,600K. Its Hyper-Reflector concentrates output into a directional beam; use a Fresnel to vary beam coverage or a softbox/bounce for a larger apparent source. A daylight reflector measurement cannot predict the exposure after a full CTO gel, a large diffusion frame or a bounce. Meter the complete configuration for those applications.

5,600K configuration1m3m5m
Bare22,150 lux2,600 lux1,020 lux
600-series Hyper-Reflector98,500 lux8,500 lux3,000 lux
Manufacturer photometrics, in lux

Sources: Aputure weather-resistance ratings; Aputure Light Storm LS 600d Pro specifications.

At 3m, Aputure’s Hyper-Reflector figure is about 3.3 times the bare-head centre reading. That concentration can create a hotspot on diffusion; a wide frame needs even illumination across its edges as well as its centre.

Tungsten correction requires gel and reduces output. A bi-colour head is easier to adjust during repeated warm-to-cool changes, while the 600d’s fixed daylight engine suits daylight-led setups.

Tests and reviews

Graham Sheldon’s CineD field review includes use on a production and a projected-logo setup. He also warns about operating the Fresnel 2X at full output, an important restriction for kits containing that older accessory.

Read Sheldon’s field review and accessory notes. The photometric table above remains identified as Aputure’s data.

Back to contents

Power and batteries

Maximum input is 720W from 100–240V AC. The controller is a separate 5.80kg component, and its position matters for cable reach, operating access and the load on a stand-mounted clamp.

Aputure’s specification lists batteries of at least 180Wh with continuous-discharge requirements of 15A at 14.4V, 8.5A at 26V or 7.5A at 28.8V. Battery voltage and selected operating mode affect output. A matching plate and a large watt-hour label do not by themselves establish that a pack can supply the required current.

Battery output depends on the controller’s selected battery mode and the fitted packs. A portable kit needs a compatible pair of batteries and a charger as well as the controller’s battery plates.

Control, cooling and camera operation

Control pathHardware and operating notes
Local / remoteOnboard controller and supported 2.4GHz remote; the remote system is separate from wireless DMX.
Phone / tabletSidus Link Bluetooth Mesh for supported intensity and effect controls.
Lighting consoleWired DMX and internal LumenRadio CRMX. Use the 600d Pro personality for the installed firmware, including any fan-control channels.
Wired networkThe help-centre reference also lists Art-Net. Establish the supplied controller’s ports and settings when building a network-controlled package.
Control options

The lamp uses active cooling. Run it at the intended brightness long enough for cooling behaviour to settle before placing a microphone close to the head. A satisfactory start-up sound check does not establish how the fixture behaves during a long take.

For dimming cues, rehearse the last part of the fade and the return from zero on the production camera. Record the selected dimming curve and control mode with the cue, so another operator can reproduce the behaviour.

Back to contents

Modifiers, rigging and the working package

Compatible accessory profiles · Aputure Quick Dome 90 Softbox · Aputure Spotlight Max Projection Attachment (19°, 36° and 50°)

The manufacturer lists a 4.64kg head, 5.80kg controller and 0.67kg Lightning Clamp as separate components. The Bowens mount needs a compatible, correctly supported optic; include the reflector/Fresnel, cable and yoke when balancing the lamp. Aputure describes this model as dust and water resistant but does not give it an IP rating.

Package componentPlanning detail
Lamp head4.64kg; 30.8 × 25.03 × 45.6cm with yoke
Controller5.80kg, before batteries
Lightning Clamp0.67kg; include its supported controller load
Optic or soft modifierUse the current Aputure compatibility guidance; include support for the chosen accessory
Case and cablesAputure lists 18.2kg total with case; that is separate from a bare head weight
Published dimensions and separate working loads

Balance the head with its actual optic installed, then route the head cable with enough slack for the complete tilt movement. Keep the controller and battery load off the head’s accessory mount. For a used purchase, the condition of the receiver threads and yoke is as relevant as whether the LEDs illuminate.

Back to contents

Alternatives and related fixtures

FixtureWhen to compare it
Aputure Light Storm LS 600x ProChoose the 600x Pro when rapid tungsten/daylight changes matter more than fixed-daylight performance.
Aputure Light Storm LS 1200d ProCompare the 1200d for more distant or heavily diffused work, allowing for its higher input and larger optics.
Alternative fixtures

Back to contents

What people are saying

Graham Sheldon, CineD

Sheldon used the 600d Pro on a professional production, including a projected logo and other set-lighting positions. He describes confidence in its build and operation, while flagging accessory compatibility: his review specifically warns against using the smaller Fresnel 2X at full output. Read article.

Reddit, r/cinematography

One owner reports damaged or stripped mounting-receiver threads on a new unit and describes contacting Aputure for service. View discussion.

Videos

Kevin Reyes combines an LS 600d Pro review with production examples.

Back to contents

Rental and used-fixture checks

  • Inspect mounting-receiver threads, fasteners and the yoke brake.
  • Check the head cable at both connectors and exercise the fan modes after warm-up.
  • Verify battery operation and the actual wireless-DMX receiver before leaving the rental house.
